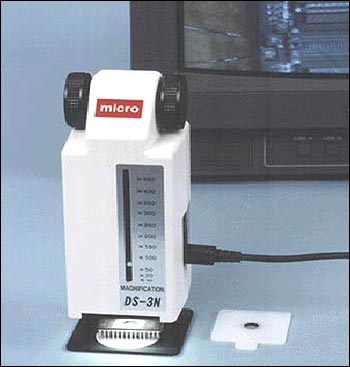

DS-3N

▒ Products> > 2D Video Microscope > > DS-3N

선명한 확대 영상을 Video로 관찰하는 영상 현미경
품질 검사 및 연구 개발에 적용
뛰어난 가격 경쟁력

특 징

무한배율 ~ 450배 Zoom lens
LED 광원 - 내측과 외측 조명
개별적 ON/OFF로 간편한 조작
1/4" CCD 및 Stand 내장
일체형 빛 반사제거 Adapter포함 (Diffuser)
NTSC Video Signal Output

- Video Printer와 연결 Printer가능
- PC와 연결 및 저장 장치로
측정 Data 저장

Features

1. Used for inspection,recognition and maintenance by magnified image on TV monitor.
2. Able to store images in PC or Video Printer and easy to make a report.
3. Image magnification up to x450(14-inch TV monitor) with manual vari-focal zoom lens
4. 270,000pixels with full-color high-resolution.
5. Compact and light weight.Easy to use.
6. Wide range of applications,such as electronics,integrated industries.

**- Magnification Data -**
Model	DS-3N	DS-DNLW^*
Magnification	W.D.(mm)	W.D.(mm)	Depth of Focus(microns)	View Field(mm)
50	20	51	1500	5.2×4
100	11	33	450	2.6×2
200	5.5	23	200	1.3×1
300	3.5		100	0.87×0.67
400	2.5		60	0.65×0.5
450	2.0		50	0.55×0.4

*LW-Long Working Distance

**- Specification -**
CCD Camera	1/4-inch
Resolution	542H/496V
System	NTSC/PAL(optional)
Illumination	High Brightness LED
Magnifications	1 x to x 450,Infinity if applied.(on a 14-inch monitor)
Input Voltage	AC 100V to 240V 50/60Hz
Dimensions	H146 to 216 x W65 x D65.2mm
Weight	approx. 400g

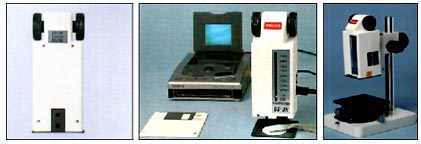

Using a Stand(optional)

Save in a Floppy Disk

Stage fix screw

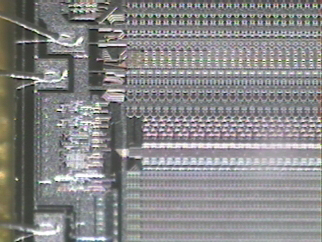

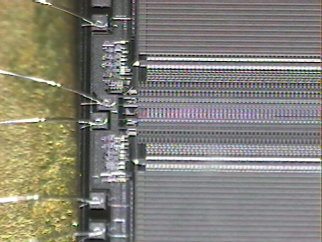

X150 LCD

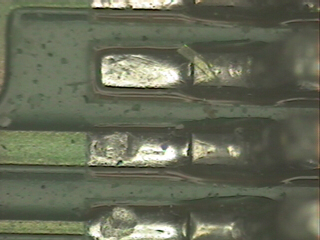

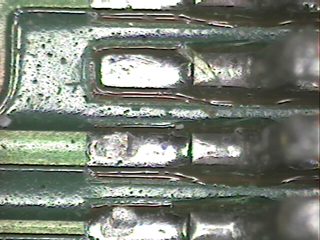

X150 TAB Lead

X60 Contact Lens

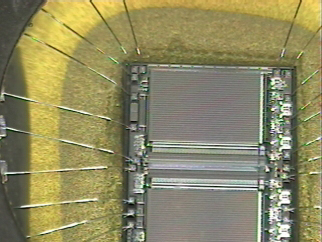

SOP

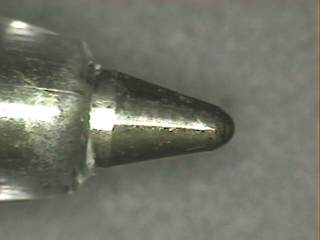

Pen x50

x100

x200

x40
