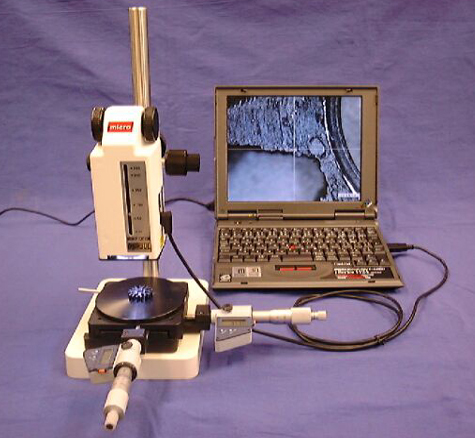

Video Microscope > > DSM-450
측정정밀도:0.001mm, X,Y축 이동 측정,
측정 Data Excel로 전송, 무한배율~450배 Zoom lens, 경제적 가격,

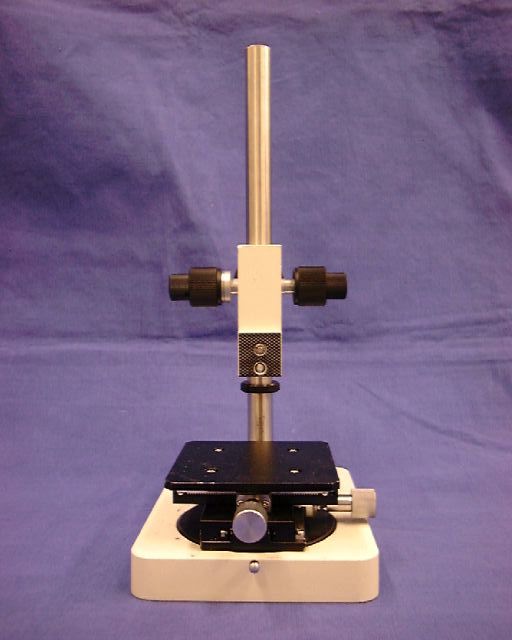

Amount of movement:25mm
Signal Output
- Features -

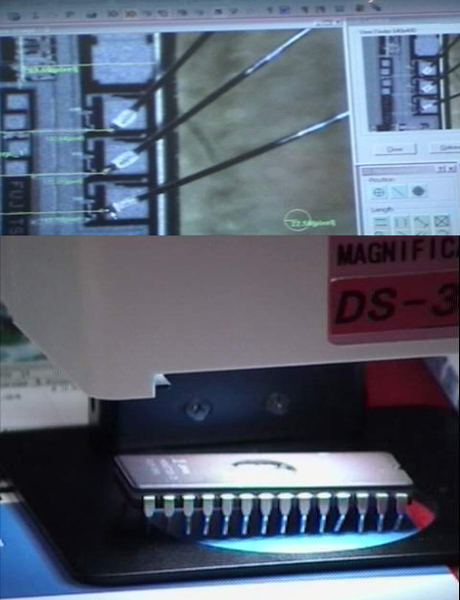

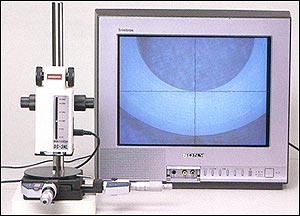

1 . Used for inspection,recognition and maintenance by magnified image on TV monitor.
2 . Able to store images in PC or Video Printer and easy to make a report.
3 . Image magnification up to x450(14-inch TV monitor) with manual vari-focal zoom lens.
4 . 270,000pixels with full-color high-resolution.
5 . Compact and light weight.Easy to use.
6 . Wide range of applications,such as electronics,integrated industries.
| Model | DS-3N | DS-DNLW* | ||
|---|---|---|---|---|
| Magnification | W.D.(mm) | W.D.(mm) | Depth of Focus(microns) | View Field(mm) |
| 50 | 20 | 51 | 1500 | 5.2×4 |
| 100 | 11 | 33 | 450 | 2.6×2 |
| 200 | 5.5 | 23 | 200 | 1.3×1 |
| 300 | 3.5 | 100 | 0.87×0.67 | |
| 400 | 2.5 | 60 | 0.65×0.5 | |
| 450 | 2.0 | 50 | 0.55×0.4 |
*LW-Long Working Distance
| CCD Camera | 1/4-inch |
|---|---|
| Resolution | 542H/496V |
| System | NTSC/PAL(optional) |
| Illumination | High Brightness LED |
| Magnifications | 1 x to x 450,Infinity
if applied.(on a 14-inch monitor) |
| Input Voltage | AC 100V to 240V
50/60Hz |
| Dimensions | H146 to 216
x W65 x D65.2mm |
| Weight | approx.
400g |
|
|
|
|
|
|
